GWZ Threaded Shaft with Cylindrical Head 6mm x 160mm packed in 25 pieces per box
+3

GWZ Threaded Shaft with Cylindrical Head 6mm x 160mm packed in 25 pieces per box

00038
£14.84
In stock
1
Product Details
Brand: Rothoblaas Holztechnic

NEW GWZ Threaded Shaft screws with cylindrical heads suitable for: wood based panels; solid timber; glue laminated timber; CLT, LVL and high density woods in service class 1 and 2 applications. Part of the Rothoblass Holztechnic range.

Key Performance Characteristics

Deep thread and high resistance steel

High torsional strength

Cylindrical head ideal for concealed joints, timber couplings and structural reinforcements

Chromium free

Galvanized Carbon steel

Diameter 5.3mm, 5.6mm, 7.0mm, 9.0mm, 11mm

Lengths 80mm to 600mm

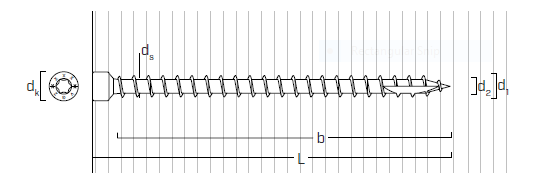

Technical Properties



Nominal Diameter d1 mm 6 8
Head Diameter dk mm 8.0 11.00
Tip Diameter d2 mm 4.0 5.2
Pre-drilling hole diameter dv mm 4.0 5.0
Characteristic Yield Moment Myk Nmm 10,000 20,000
Characteristic withdrawal resistance parameter Fax,k N/mm2 11.0 11.0
Characteristic yield strength Fy.k N/mm2 1.000 1.000
Characteristic tensile strength Ftens,k kN 12 21
